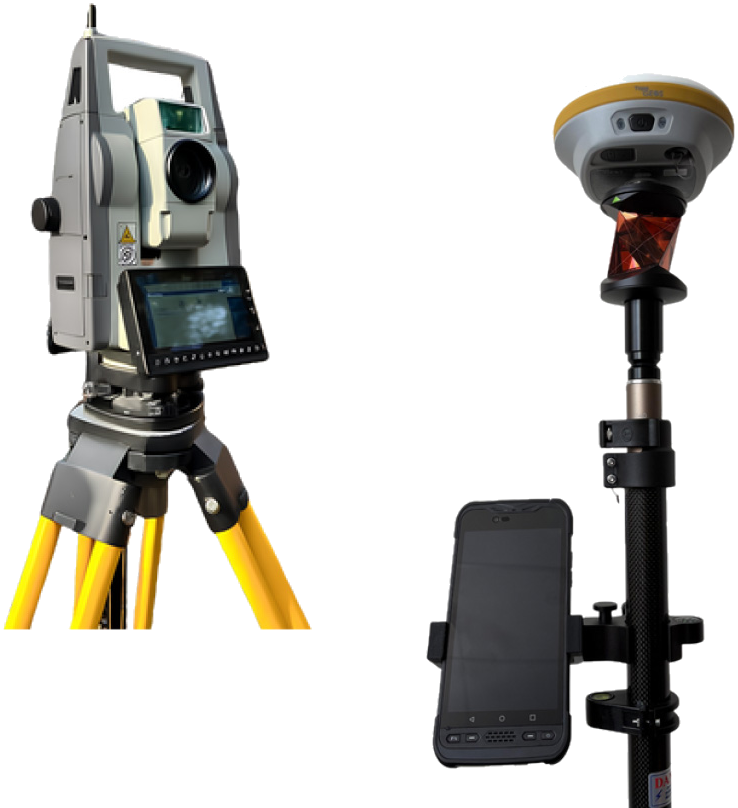

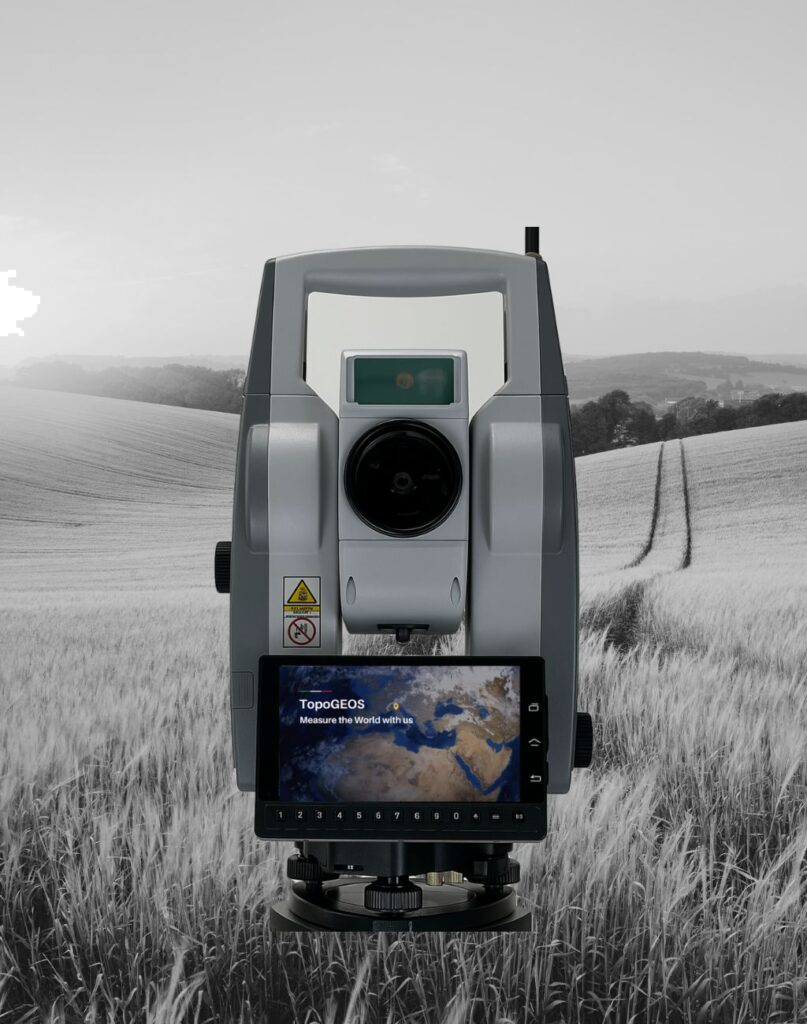

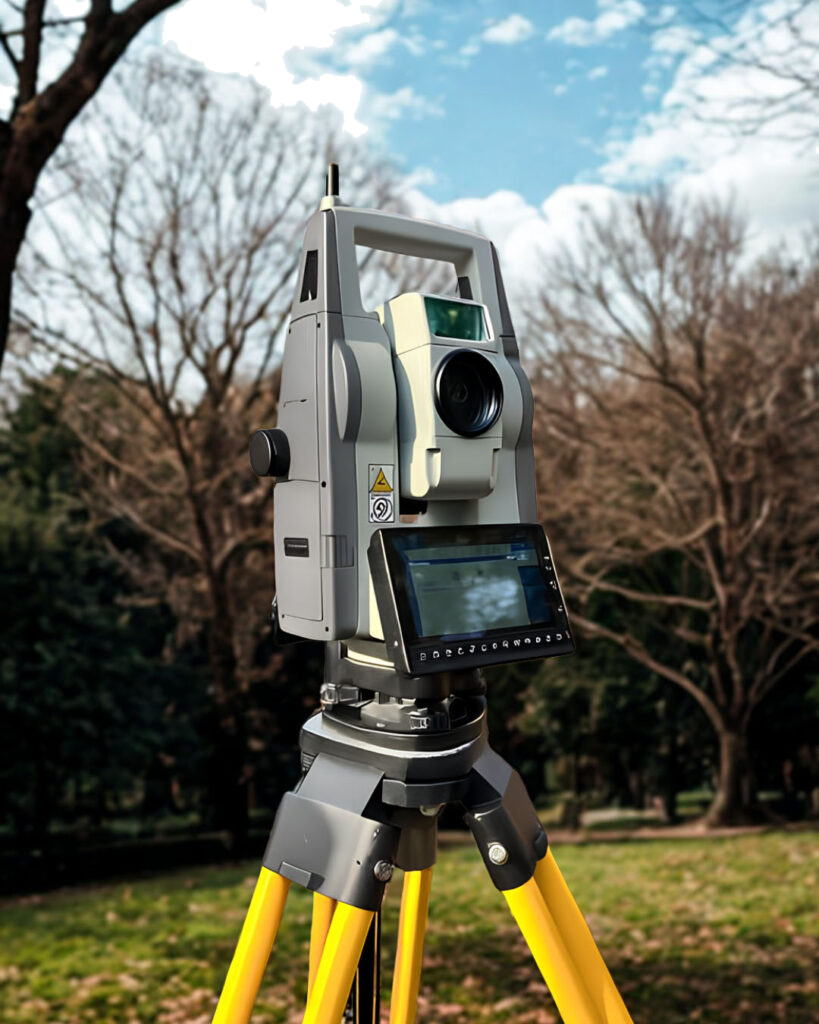

TG600 Automatic Robotic Total Station
High-precision, fully automated robotic total station — Android 11, 800 m reflectorless.
The TG600 combines speed, precision, and full automation for topographic, engineering, and construction work. It features 2″ angular accuracy, reflectorless range to 800m, and auto-tracking with ±1mm aim precision at 100m. The device runs Android 11 with dual 5.5″ touchscreen and connectivity options (Bluetooth, Wi-Fi, 4G), supporting one-person operation via integrated TopoGeoSurvey software.
Request a quote →
We reply within 24h with availability and best price.
Highlights
- 2″ angular accuracy
- Reflectorless range 800 m · single prism 3,500 m
- Auto-tracking ±1 mm at 100 m
- Prism search 360° H · ±18° V · range up to 1000 m
- Max rotating speed 60°/s
- Dual 5.5″ TFT LCD touchscreen
Technical specifications
| Battery | Li-ion 5400 mAh |
| Display | Dual 5.5″ TFT LCD touchscreen |
| Angle units | DEG 360° · GON 400 · MIL 6400 |
| Connectivity | Bluetooth, Wi-Fi, 4G |
| Prism search | 360° H · ±18° V |
| Operating time | 4 hours |
| Angular accuracy | 2″ |
| Onboard software | TopoGeoSurvey TS-GPS |
| Operating system | Android 11 |
| Prism lock range | 3 m to 500–600 m |
| Max rotating speed | 60°/s |
| Prism aiming range | Up to 1000 m |
| Prism aiming precision | 1–2 mm at 500 m |
| Auto-tracking aim precision | ±1 mm at 100 m |
| Distance range (single prism) | 3,500 m |
| Distance range (reflectorless) | 800 m |
