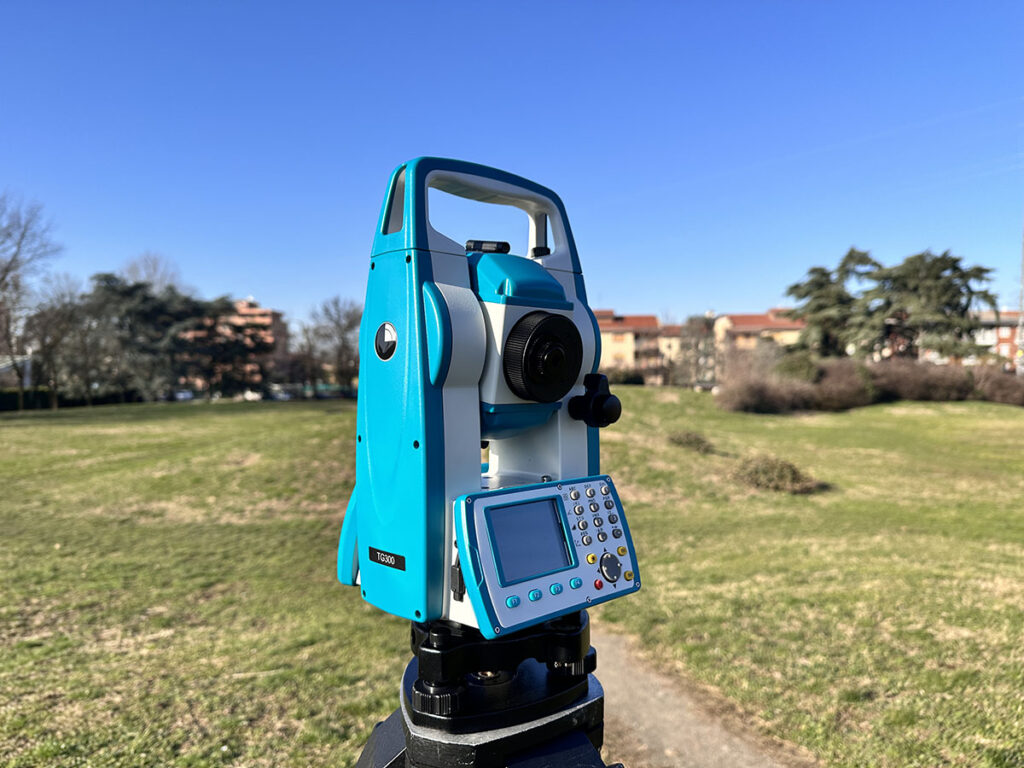

TG300 Total Station

Reliable, sturdy, compact 2″ mechanical total station — 600 m reflectorless.

The TG300 is a mechanical total station featuring high-precision absolute encoder system with 2″ angular accuracy and continuous angle measurement. It includes a dual-axis optoelectronic compensator (±4′ range, 3″ accuracy), Class II laser, 2.8″ color display, 24-key keypad, USB and Bluetooth connectivity, and stores up to 40,000 points. The device supports 11 languages and operates from –10 °C to +50 °C with IP54 rating.

Request a quote →
We reply within 24h with availability and best price.

Highlights

  • 2″ angular accuracy · continuous angle measurement
  • Reflectorless range 600 m
  • Single prism range 3,500 m · reflector tape 2,000 m
  • Dual-axis optoelectronic compensator ±4′ / 3″ accuracy
  • Class II laser · laser plummet
  • 2.8″ color display · 24-key keypad

Technical specifications

Keypad24-key
Battery2,600 mAh
Display2.8″ color
CompensatorDual-axis optoelectronic, ±4′ range, 3″ accuracy
Laser classClass II
ConnectivityUSB and Bluetooth
Data storage40,000 points
Operating timeUp to 25 h (angle)
Angular accuracy2″
Distance accuracy2 mm + 2 ppm to 3 mm + 2 ppm
Protection ratingIP54
Operating temperature–10 °C to +50 °C
Distance range (non-prism)600 m
Distance range (single prism)3,500 m
Distance range (reflector tape)2,000 m
