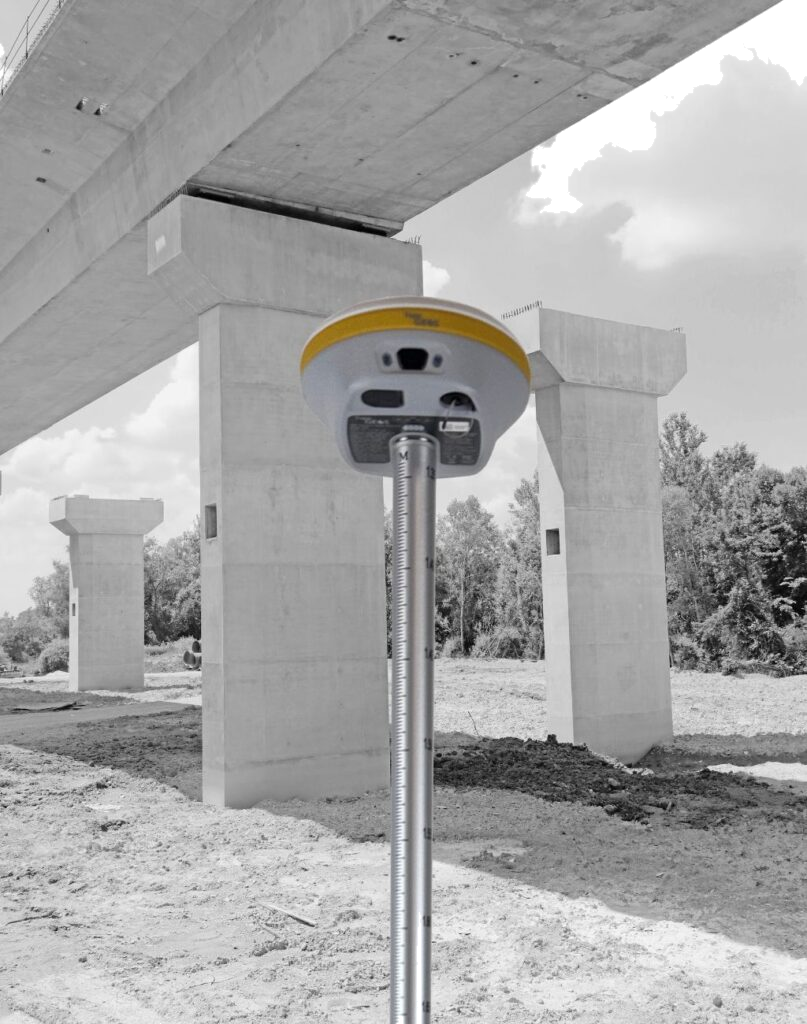

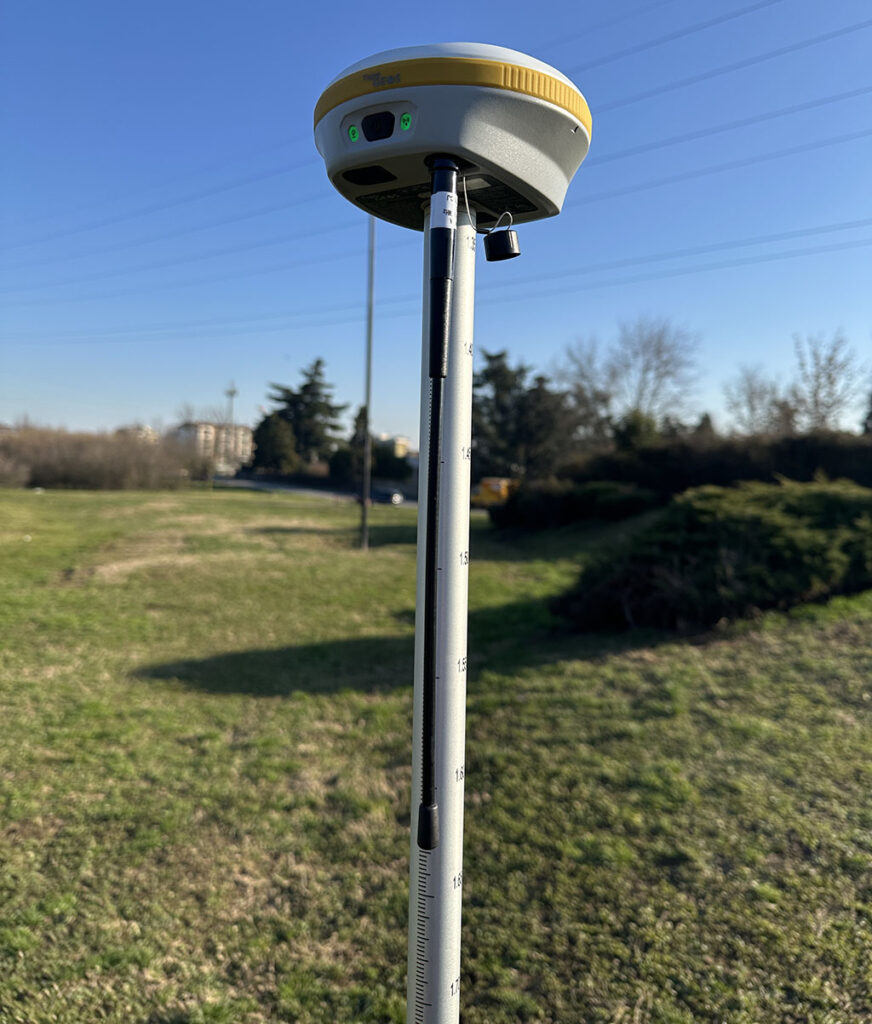

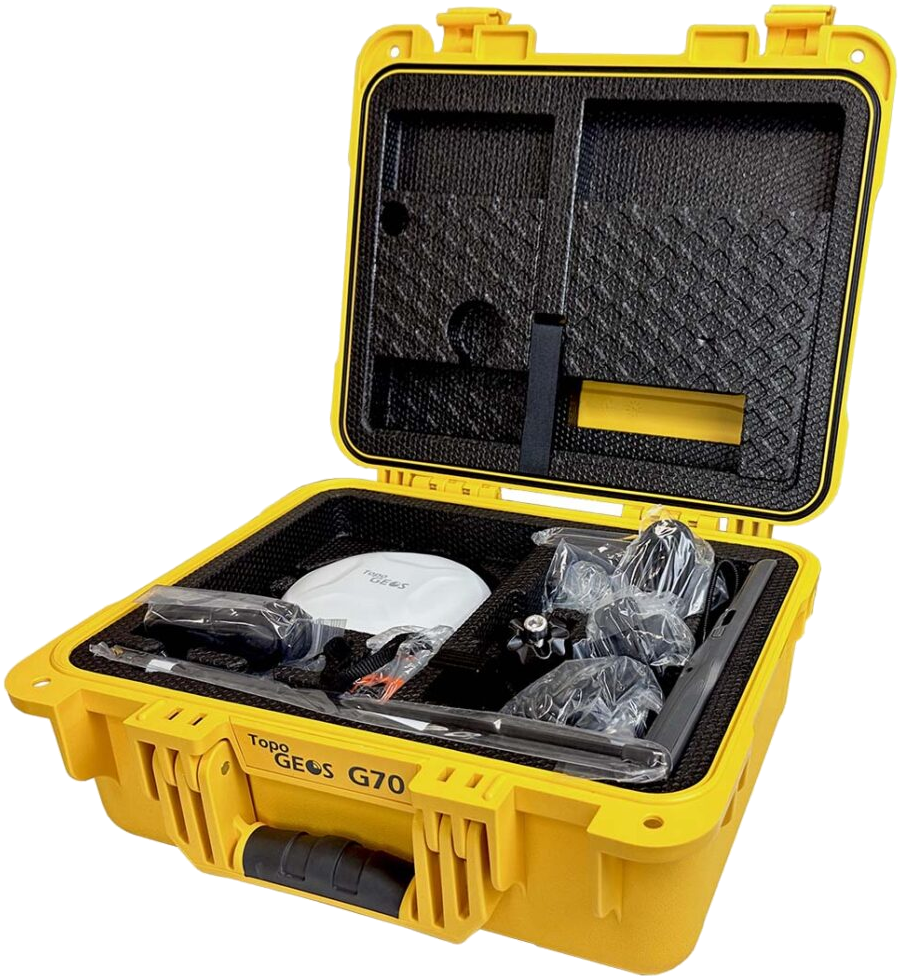

G70 GNSS Receiver with Camera
Compact, lightweight, full-constellation GNSS with IMU and 2 MP camera.
The G70 is a lightweight and robust GNSS receiver designed for high-precision surveying and mapping. It supports all major satellite constellations (GPS, GLONASS, Galileo, BeiDou, QZSS) with 1,408 channels and a 20 Hz position update rate. The device features an integrated IMU sensor for tilt compensation, a 2 MP camera with 72° field of view for visual stakeout, internal UHF radio (1W), 4G modem for network RTK, Bluetooth 5.0, Wi-Fi, USB Type-C, and Web UI. It measures 132 × 57 mm, weighs 650 g, includes a 12,000 mAh battery supporting 10 hours of operation with PD fast charging, and has IP67 dust and water protection.
Highlights
- 1,408 channels · 20 Hz position update rate
- Integrated IMU tilt compensation
- 2 MP camera, 72° FOV — visual stakeout
- Internal UHF radio 1 W
- 12,000 mAh built-in battery — 10 h operation
- PD fast charging via USB Type-C
Technical specifications
| IMU | Integrated, tilt compensation |
| Camera | 2 MP, 72° FOV |
| Weight | 650 g |
| Battery | 12,000 mAh built-in |
| Channels | 1,408 |
| Charging | PD fast charging |
| Dimensions | 132 × 57 mm |
| Connectivity | 4G modem, Bluetooth 5.0, Wi-Fi, USB Type-C |
| RTK init time | < 5 seconds |
| Constellations | GPS, GLONASS, Galileo, BeiDou, QZSS |
| Internal radio | UHF 1 W |
| Protection rating | IP67 |
| Position update rate | Up to 20 Hz |
| Signal reacquisition | < 1 second |
